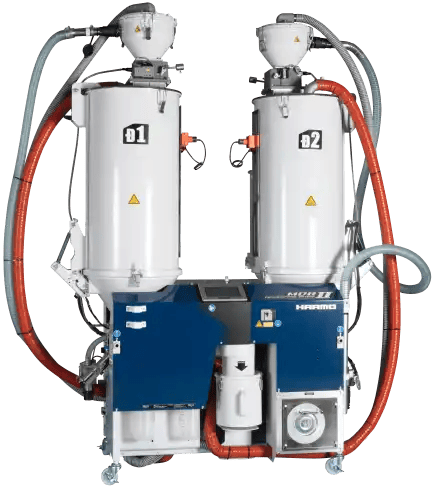

MDRⅡ 2-Tank

[{item=[MDRⅡ-5050（-HG）, MDRⅡ-7575（-HG）], pdf_group=[{pdf=https://8087610.fs1.hubspotusercontent-na1.net/hubfs/8087610/catalog/MDR2_2tank_eng.pdf, pdf_text=View Product Catalog PDF}], product=[{product_item=[Lower than -45℃ *may differ depending on the supplied air, Lower than -45℃ *may differ depending on the supplied air], product_name=Dehumidifier Dew Point（℃）}, {product_item=[Polymer separation membrane method, Polymer separation membrane method], product_name=Dehumidifying Method}, {product_item=[80～150, 80～150], product_name=Drying Setting Temperature（℃）}, {product_item=[9.5/10.6 × 2, 9.5/10.6 × 2], product_name=Drying Blower｜Flow（50/60Hz）（㎥/min）}, {product_item=[0.91/1.3 × 2, 0.91/1.3 × 2], product_name=Drying Blower｜Static Air Pressure（50/60Hz） （KPa）}, {product_item=[3 phase 0.3 × 2, 3 phase 0.3 × 2], product_name=Drying Blower｜Motor（kw）}, {product_item=[5.4 × 2, 5.4 × 2], product_name=Drying Heater（kw）}, {product_item=[83（50kg）× 2, 125（75kg）× 2], product_name=Drying Hopper (Material: SUS)｜Maximum stocking capacity ※1（ℓ）}, {product_item=[42～83
（25～50kg）× 2, 42～125
（25～75kg）× 2], product_name=Drying Hopper (Material: SUS)｜Adjustable Range ※1}, {product_item=[3.5/4.2, 3.5/4.2], product_name=Loading Blower｜Flow（50/60Hz）（㎥/min）}, {product_item=[15.0/20.0, 15.0/20.0], product_name=Loading Blower｜Static Air Pressure（50/60Hz）（KPa）}, {product_item=[1.5/1.75, 1.5/1.75], product_name=Loading Blower｜Motor（kw）}, {product_item=[0.5 or more, 0.5 or more], product_name=Compressed Air Supply Pressure （MPa）}, {product_item=[150 × 2, 150 × 2], product_name=Air Consumption｜Standard Mode}, {product_item=[90 × 2, 90 × 2], product_name=Air Consumption｜Eco Mode (Option)}, {product_item=[Cellulose Fiber
Synthetic Fiber, Cellulose Fiber
Synthetic Fiber], product_name=Filter (Circulating)｜Material}, {product_item=[Equivalent to 10, Equivalent to 10], product_name=Filter (Circulating)｜Filtering Capacity（μ）}, {product_item=[

Cellulose Fiber
Synthetic Fiber

, Cellulose Fiber
Synthetic Fiber], product_name=Filter (Conveying)｜Material}, {product_item=[Equivalent to 10, Equivalent to 10], product_name=Filter (Circulating)｜Filtering Capacity（μ）}, {product_item=[Standard Specifications Φ38, Standard Specifications Φ38], product_name=Hose Diameter｜Air Suction Hose （mm）}, {product_item=[φ38, φ38], product_name=Hose Diameter｜Material Suction Hose （mm）}, {product_item=[3.5, 3.5], product_name=Conveying Hopper Effective Capacity (Dryer)}, {product_item=[7 inch Wide Color Monitor, 7 inch Wide Color Monitor], product_name=Screen Size}, {product_item=[Japanese, English, Chinese, Japanese, English, Chinese], product_name=Language support}, {product_item=[99 MEMORIES, 99 MEMORIES], product_name=Mold memory}, {product_item=[50 entries, 50 entries], product_name=Material Library}, {product_item=[3-phase AC200
(50/60Hz), 3-phase AC200
(50/60Hz)], product_name=Power Supply（V）}, {product_item=[40, 40], product_name=Rated Current （A）}, {product_item=[3.49 when temperature is set to 100℃, 3.49 when temperature is set to 100℃], product_name=Power Consumption（kw）}, {product_item=[PID Control, PID Control], product_name=Temperature Controller｜Control Method}, {product_item=[ K（CA）,  K（CA）], product_name=Temperature Controller｜Sensor Input}, {product_item=[G Hopper 100, G Hopper 100], product_name=IMM Loading Hopper (Standard Type)｜Hopper Type}, {product_item=[7, 7], product_name=IMM Loading Hopper (Standard Type)｜Capacity}, {product_item=[292, 295], product_name=Weight（kg）}], rich_text=, rich_text_2=

Caution: *1 The capacity(ℓ) is based on the 0.6 apparent specific gravity of the ABS virgin pellet.
