Attachment for EOAT

Holder C1 type

For traverse type

Make an inquiry
di-holderC1-use-2021 (1)

Holder C1 type | For traverse type

  • For 2 to 4 pieces of portrait molded products
  • Compatible with slide rail
  • B2 large type

Type of use

Vacuum

吸着パットのアイコン|株式会社ハーモ
Vacuum pad
スライド(吸着)金具のアイコン|株式会社ハーモ
Slide (vacuum) bracket
Use Take-out of side gate products
Applicable attachment
  • Vacuum pad
  • Slide (vacuum) bracket
number of items used 2、4、8

Gripping

ミニシリンダのアイコン|株式会社ハーモ
Mini cylinder
RCH取出機用ツメ レバーチャックのアイコン｜株式会社ハーモ
Gripper for RCH robot
レバーチャックのアイコン｜株式会社ハーモ
Lever Gripper
Use Take-out of side gate products
Applicable attachment
  • Mini cylinder
  • Gripper for RCH robot
  • Lever Gripper
number of items used 2、4、8

Vacuum and "Gripping"

吸着パットのアイコン|株式会社ハーモ
Vacuum pad
スライドレ金具のアイコン|株式会社ハーモ
Slide (vacuum) bracket
ミニシリンダのアイコン|株式会社ハーモ
Mini cylinder
RCH取出機用ツメ レバーチャックのアイコン｜株式会社ハーモ
Gripper for RCH robot
レバーチャックのアイコン｜株式会社ハーモ
Lever Gripper
Use Take-out of submarine gate products
Applicable attachment
  • Vacuum pad
  • Slide (vacuum) bracket
  • Mini cylinder
  • Gripper for RCH robot
  • Lever Gripper
number of items used 2、4、8

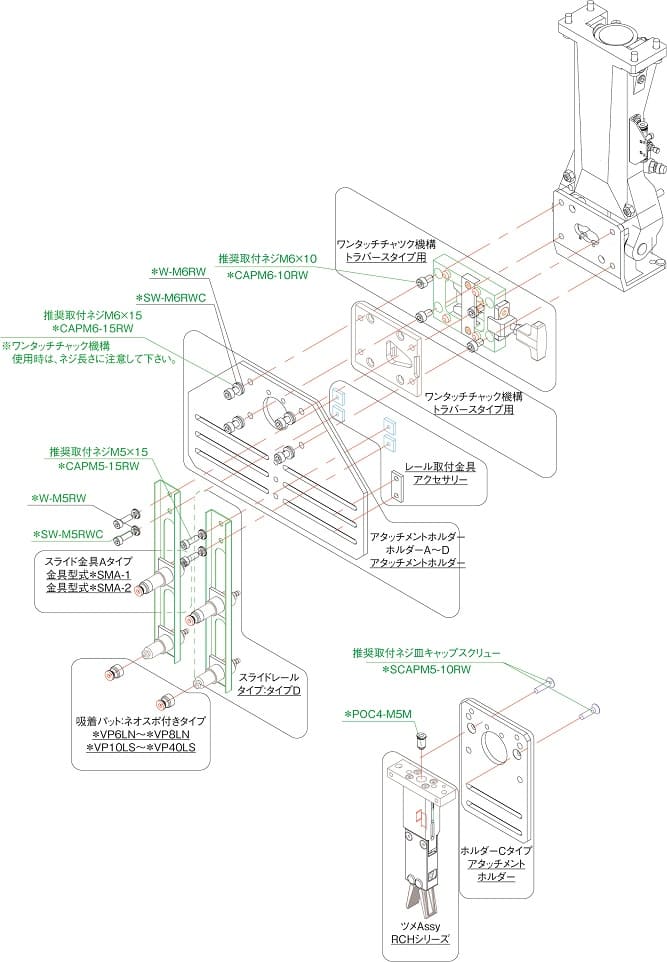

Product Composition

Enlarge the image

di-holderC1-use-2021 (1)

Function of the Option

Manifold

This is a distributor that distributes the original pressure air to each supply point.

Available from 4 to 8 stacks.

manifold

Nipper adjuster tool

Reduces setup time to one-third (compared to our company)



One-touch mechanism" is adopted for the wait nipper frame. This contributes to shorter setup time.



Mounting Completed in 30 seconds. Deviation in the θ direction is also supported.



An "angle adjustment mechanism" is adopted for the nipper frame, and installation can be completed in 30 seconds. The angle can be adjusted with the nipper frame to prevent "θ-directional misalignment" that occurs when the mold is placed.
(Adjustable within a maximum range of ±5°)





See the product page



Nipper_adjuster_tool_variation

One touch attachment



This greatly reduces the setup time for EOAT changes associated with mold changes.



  • Holder (robot side)
  • Attachment (EOAT side)
  • One touch attachment (set)



See the product page

ミニシリンダ|ワンタッチアタッチメント|アタッチメント セット|株式会社ハーモ

Slide rail

Various slide rails are available from type A to type D.



See the product page



スライドレール|株式会社ハーモ (1)

Examples of other holder creation
