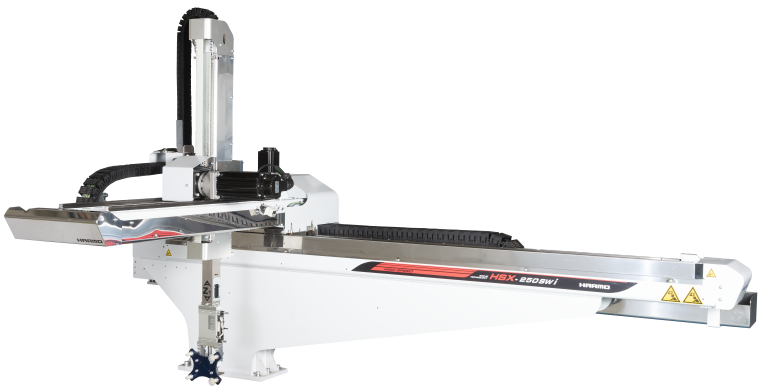

Traverse type servo-driven take-out robot

High-cycle（HSX i series）

HSX-150/250SW i

120 to 350 tons, 2-plate, low ceiling type

HSX-i

Traverse type servo-driven take-out robot

High-cycle（HSX i series）

120 to 350 tons, 2-plate, low ceiling type

Click here for product PDF

HSX-150/250SW i

  IMM size
（ton）		 Maximum payload Supported Plates
(Molds)		 Feature 1
HSX-150SW i 120〜250 3（Including the EOAT） 2 low ceiling
HSX-250SW i 180〜350 5（Including the EOAT） 2 low ceiling

Product features

  • Productivity improved by reducing take-out time by 11.2% by (compared to our
    conventional models)
  • Stable operation realized through reduction of suppressed vibration by 94.4%
    (Y-axis direction/compared to our conventional models)
  • Automatic centralized lubrication system equipped as standard to enable stable
    operation for a long period of time
  • Cleanroom compatible: Centralized exhaust, grease catcher, and stainless cover
    equipped as standard
  • Best suited for high-cycle take-out in the food
    industry, etc.

Maximum payload

3〜5kg (including attachments)

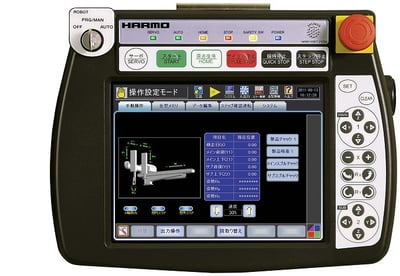

Controller

HRS-1500

8.4 inch high-definition LCD screen adopted.
Offering excellent operability and legibility.

  • Smart programming
    Customers can easily modify programs on the i-controller screen on site.
  • Peripherals communication
    Peripheral devices can be operated on the control screen of the take-out robot - HARMO's proprietary function.
  • Screen customization
    The content of the screen can be edited to suit your preference.
HRS-1500

Product Specifications

[{item=[HSX-150SW i, HSX-250SW i], pdf_group=[{pdf=https://8087610.fs1.hubspotusercontent-na1.net/hubfs/8087610/catalog/HSX-150-250SWi_eng.pdf, pdf_text=Click here for product PDF}], product=[], rich_text=HSX-150SW i、HSX-250SW i, set={set20={set_item=[], set_title=Maximum power consumption（W）}, set10={set_item=[90, 90], set_title=Wrist rotation（°）}, set11={set_title=Wrist unit torque (Nm)}, set12={set_item=[3 (including attachments), 5 (including attachments)], set_title=Maximum Payload（kg）}, set13={set_item=[365, 450], set_title=Main unit weight（kg）}, set14={set_item=[1357×2510×1414, 1585×2741×1596], set_title=H x W x D (mm)}, set15={set_item=[0.5, 0.5], set_title=Working Air Pressure (Mpa)}, set16={set_item=[0.48, 1.2], set_title=Air consumption ※(ℓ/cyc"ANR")}, check=true, set17={set_item=[Digital AC servo motor, Digital AC servo motor], set_title=Control method}, set18={set_item=[4342, 4342], set_title=Power Consumption（W）}, set19={set_item=[], set_title=Power Supply（V）}, set2={set_item=[800［900］, 1000［1100］], set_title=Main Arm Vertical Stroke (mm)}, set3={set_title=Sub vertical stroke (mm)}, set4={set_item=[530（163～693）
［710（163～873）］, 710（170～880）], set_title=Main Kick Stroke（mm）}, set5={set_title=Sub kick stroke (mm)}, set6={set_item=[1400［1600］, 1600［1800］], set_title=Traverse Stroke (mm)}, set7={set_title=Main home position (mm)}, set8={set_title=Maximum reach (mm)}, set9={set_title=Sub minimum reach (mm)}}, sub_title=}]
HSX-150SW i、HSX-250SW i
  HSX-150SW i HSX-250SW i
Main Arm Vertical Stroke (mm) 800［900］ 1000［1100］
Main Kick Stroke（mm） 530（163～693）
［710（163～873）］ 		710（170～880）
Traverse Stroke (mm) 1400［1600］ 1600［1800］
Wrist rotation（°） 90 90
Maximum Payload（kg） 3 (including attachments) 5 (including attachments)
Main unit weight（kg） 365 450
H x W x D (mm) 1357×2510×1414 1585×2741×1596
Working Air Pressure (Mpa) 0.5 0.5
Air consumption ※(ℓ/cyc"ANR") 0.48 1.2
Control method Digital AC servo motor Digital AC servo motor
Power Consumption（W） 4342 4342
  HSX-150SW i HSX-250SW i

* Enclosed in square brackets［　］ are options.
* 70 N L/min is consumed separately when using a vacuum ejector.

Click here for product PDF PDF

Standard Specifications

  • Product gripper 1 circuit
  • Vacuum ejector 1 circuit
  • Main sprue gripper 1 circuit
  • Multi-row placement (2 points)
  • Palletizing
  • Home position setting
  • Moving / Stationary Take-out
  • Mold closing while ascending
  • Pass motion (reducing the cycle time)
  • Product fall-out monitoring
  • Reject release
  • Initial reject release counter
  • Sampling
  • Position adjustment in auto operation
  • In-mold release
  • Step confirmation operation
  • Internal mold memoryリ
  • Language switching function (5 languages)
  • Back light auto dim
  • Maintenance timing setting, warning indication
  • Centralized Lubrication System
  • Centralized exhaust
  • Grease catcher

Option

  • Vacuum ＆ blow circuit - 2 units
  • Electric type vacuum & blow circuit
  • Electric type vacuum & blow circuit - 2 units
  • Pressure monitoring assy
  • Air blow (software provided separately)
  • Traverse end pillar
  • Grip nipper
  • Indicator
  • Peripherals communication
  • Specified color
  • Others
