Traverse type servo-driven take-out robot

High performance model (HRXⅢ-i series)

HRXⅢ-100/150/250SWi･GWi（-W）

Medium size,  low ceiling, 75 to 350 tons, 2-plate/3-plate, Compatible with 2-axis servo wrist unit, CE

取出ロボット｜HRXⅢ-100/150/250SWi･GWi（-W）｜株式会社ハーモ

High performance model (HRXⅢ-i series)

HRXⅢ-100/150/250SWi･GWi（-W）（Ry/Rz）

  • Medium size
  • low ceiling
  • 75 to 350 tons
  • 2-plate/3-plate
  • Compatible with 2-axis servo wrist unit
  • CE



Click here for product PDF



Take-out robot for CE

  IMM size
（ton）		 Maximum payload Supported Plates
(Molds)		 Feature 1
HRXⅢ-100SWi 75〜125 7 2 High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-100GWi 75〜125 7 3 High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-150SWi 120〜250 7 2 High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-150GWi 120〜250 7 3 High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-250SWi High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-250GWi High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-150SWi-W 120〜250 12 2 High performance model, Compatible with 2-axis servo wrist unit, CE
HRXⅢ-150GWi-W 120〜250 12 3 High performance model, Compatible with 2-axis servo wrist unit, CE

Maximum payload

7〜12kg(including attachments)

Product video

Total Link of take-out robot and peripheral equipment for sorting of good and defective products
Automation of insert molding by take-out robot solves manpower shortage

Linkage with peripheral equipment (optional)

Total Link

Peripheral equipment settings and monitors can be collectively managed. Contributes to shorter setup time.

  • Batch automatic setting of all peripherals with mold data of a robot
  • Batch startup of all peripherals by robot
  • Batch monitoring of all peripheral equipment on the robot
See "Total Link" page
トータルリンク

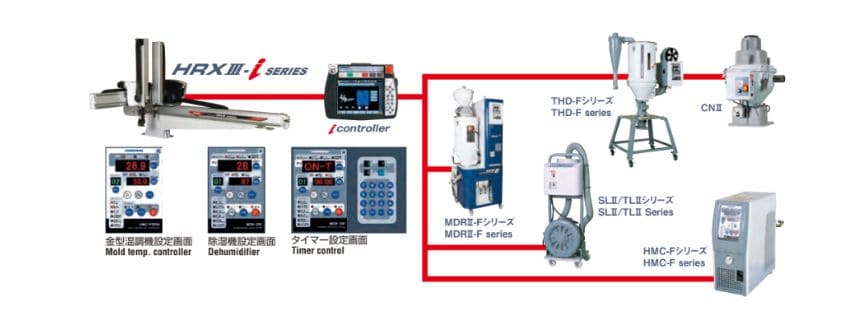

Peripheral equipment communication (HAL-NET)

Interlocking with HARMO "F series peripheral equipment" is possible. Peripheral equipment can be centrally managed on the operation screen of the take-out robot.
Once saved, the robot and peripheral equipment can be linked simply by selecting the mold data of the molding machine. This contributes to improve productivity by preventing human errors and shortening setup time.
HAL-NET|iシリーズ|株式会社ハーモ

Controller : HRS-1500i

Peripheral equipment communication (HARMO original option)

  • Interlocking with Harmo "F series peripheral equipment
  • Peripheral equipment can be operated from the operation screen of the take-out robot.



Screen customization

  • You can edit the screen to your liking.



Smart programming

  • Customers can easily change the program on the i-controller screen on site.
  • Program changes can be made on a PC using the smart program function (offline function).
  • Mold names, points, names, etc. can be input in Kanji, Kana, English, numbers, and foreign languages.
HRX-i_cont_front_black_mini

Solving problems at molding sites

Automation and manpower saving

Inspection

Automatic sorting of good and defective products in combination with a camera.
This automated inspection, previously performed by the human eye, allows for labor savings.

Download documents
カメラ検査

Automatic gate cutting of molded products

HARMO's "take-out robot x nipper device = automation" is useful to solve manpower shortage and realize 24-hour operation.



Case 1

A table type nipper manufacturer, which charges 3-5 million yen per unit, succeeded in dramatically reducing costs by using our servo wrist unit and wait nippers.



Case 2

A company that used to spend 400,000 yen per month for in-house workers to do gate cutting of 4 parts taken out by a swing-type robot from other company, realized automation by using HARMO's traverse running robot and waiting nippers. The entire cost of in-house work was reduced.

Download documents
ゲートカット

Insert operation

Insert molding, which used to rely on manual labor, can be greatly reduced by introducing a workpiece feeder and automatic molding take-out.
インサート成形の自動化

Assembly Work

The assembly of two types of molded products is automated by interlocking robots and secondary processing machines.
組立作業

Product Specifications

[{item=[HRXⅢ-100SWi, HRXⅢ-100GWi, HRXⅢ-150SWi, HRXⅢ-150GWi, HRXⅢ-250SWi, HRXⅢ-250GWi, HRXⅢ-150SWi-W, HRXⅢ-150GWi-W], pdf_group=[{pdf=https://8087610.fs1.hubspotusercontent-na1.net/hubfs/8087610/catalog/HRX3-i_jpn.pdf, pdf_text=Click here for product PDF}], product=[{product_item=[75～125, 75～125, 100～250, 100～250, 180～350, 180～350, 100～250, 100～250], product_name=IMM size （ton）}, {product_item=[800【900】, 800【900】, 900【1000】, 900【1000】, 1200, 1200, 900【1000】, 900【1000】], product_name=Main arm stroke (mm)}, {product_item=[ー, 850【950】, ー, 950【1050】【1150】, ー, 1250, ー, 950【1050】【1150】], product_name=Sub arm stroke (mm)}, {product_item=[556（144～700）, 449（251～700）, 656（144～800）, 549（251～800）, 660（125～785）, 553（232～785）, 656（135～791）, 549（242～791）], product_name=Main kick stroke (mm)}, {product_item=[ー, 499（95～544）, ー, 549（95～644）, ー, 553（80～633）, ー, 549（95～644）], product_name=Sub kick stroke (mm)}, {product_item=[1200【1400】【1600】, 1200【1400】【1600】, 1400【1600】【1800】【2000】, 1400【1600】【1800】【2000】, 1600【1800】【2000】, 1600【1800】【2000】, 1400【1600】【1800】【2000】, 1400【1600】【1800】【2000】], product_name=Traverse stroke (mm)}, {product_item=[130, 130, 150, 150, 250, 250, 130, 130], product_name=Main home position (mm)}, {product_item=[700, 700, 800, 800, 785, 785, 791, 791], product_name=Maximum reach (mm)}, {product_item=[ー, 95, ー, 95, ー,

80

, ー, 95], product_name=Sub minimum reach (mm)}, {product_item=[90, 90, 90, 90, 90, 90, 90, 90], product_name=Wrist rotation（°）}, {product_item=[7(including attachments), 7(including attachments), 7(including attachments), 7(including attachments), 7(including attachments), 7(including attachments), 12(including attachments), 12(including attachments)], product_name=Maximum Payload（kg）}, {product_item=[1069×2289×1345, 1069×2289×1345, 1149×2449×1443, 1149×2449×1443, 1429×2689×1447, 1429×2689×1447, 1149×2449×1443, 1149×2449×1443], product_name=Height x Width x Depth (mm)}, {product_item=[0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5], product_name=Working air pressure (Mpa)}, {product_item=[1.15, 1.17, 1.15, 1.17, 1.15, 1.17, 1.86, 1.88], product_name=Air consumption (ℓ/cyc"ANR")}, {product_item=[Digital AC servo moto, Digital AC servo moto, Digital AC servo moto, Digital AC servo moto, Digital AC servo moto, Digital AC servo moto, Digital AC servo moto, Digital AC servo moto], product_name=Control method}, {product_item=[Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz), Three-phase AC200V±10% (50Hz/60Hz)], product_name=Power Supply (V)}, {product_item=[1700, 2300, 1700, 2300, 1700, 2300, 1700, 2300], product_name=Power consumptioin（W）}], rich_text=, sub_title=HRXⅢ-100/150/250SWi･GWi（-W）}]

HRXⅢ-100/150/250SWi･GWi（-W）

  HRXⅢ-100SWi HRXⅢ-100GWi HRXⅢ-150SWi HRXⅢ-150GWi HRXⅢ-250SWi HRXⅢ-250GWi HRXⅢ-150SWi-W HRXⅢ-150GWi-W
IMM size （ton） 75～125 75～125 100～250 100～250 180～350 180～350 100～250 100～250
Main arm stroke (mm) 800【900】 800【900】 900【1000】 900【1000】 1200 1200 900【1000】 900【1000】
Sub arm stroke (mm) ー 850【950】 ー 950【1050】【1150】 ー 1250 ー 950【1050】【1150】
Main kick stroke (mm) 556（144～700） 449（251～700） 656（144～800） 549（251～800） 660（125～785） 553（232～785） 656（135～791） 549（242～791）
Sub kick stroke (mm) ー 499（95～544） ー 549（95～644） ー 553（80～633） ー 549（95～644）
Traverse stroke (mm) 1200【1400】【1600】 1200【1400】【1600】 1400【1600】【1800】【2000】 1400【1600】【1800】【2000】 1600【1800】【2000】 1600【1800】【2000】 1400【1600】【1800】【2000】 1400【1600】【1800】【2000】
Main home position (mm) 130 130 150 150 250 250 130 130
Maximum reach (mm) 700 700 800 800 785 785 791 791
Sub minimum reach (mm) ー 95 ー 95 ー 80 ー 95
Wrist rotation（°） 90 90 90 90 90 90 90 90
Maximum Payload（kg） 7(including attachments) 7(including attachments) 7(including attachments) 7(including attachments) 7(including attachments) 7(including attachments) 12(including attachments) 12(including attachments)
Height x Width x Depth (mm) 1069×2289×1345 1069×2289×1345 1149×2449×1443 1149×2449×1443 1429×2689×1447 1429×2689×1447 1149×2449×1443 1149×2449×1443
Working air pressure (Mpa) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Air consumption (ℓ/cyc"ANR") 1.15 1.17 1.15 1.17 1.15 1.17 1.86 1.88
Control method Digital AC servo moto Digital AC servo moto Digital AC servo moto Digital AC servo moto Digital AC servo moto Digital AC servo moto Digital AC servo moto Digital AC servo moto
Power Supply (V) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz) Three-phase AC200V±10% (50Hz/60Hz)
Power consumptioin（W） 1700 2300 1700 2300 1700 2300 1700 2300
  HRXⅢ-100SWi HRXⅢ-100GWi HRXⅢ-150SWi HRXⅢ-150GWi HRXⅢ-250SWi HRXⅢ-250GWi HRXⅢ-150SWi-W HRXⅢ-150GWi-W
※１　When using vacuum ejector, 46 L/min [ANR] per set of ejectors is consumed extra.
【 】=Option

Click here for product PDF PDF
